Star Trac 10 Series Freerunner w/LCD (New)

Star Trac 10 Series Freerunner w/LCD Image


Price: USD $12,599.00
Condition: New in Box
Grade: Commercial
Warranty: Full Manufacturers (See Description for Details)
Ships: New in Boxes (Assembly Options Available)
Processing Time: Ships from Manufacturer's Warehouse in 1-2 Weeks

Stock Status: Available to Order

Product Code: ST-10TRX-LCDQ

Processing Time*:


Full Assembly & Installation:




Tablet Holder:

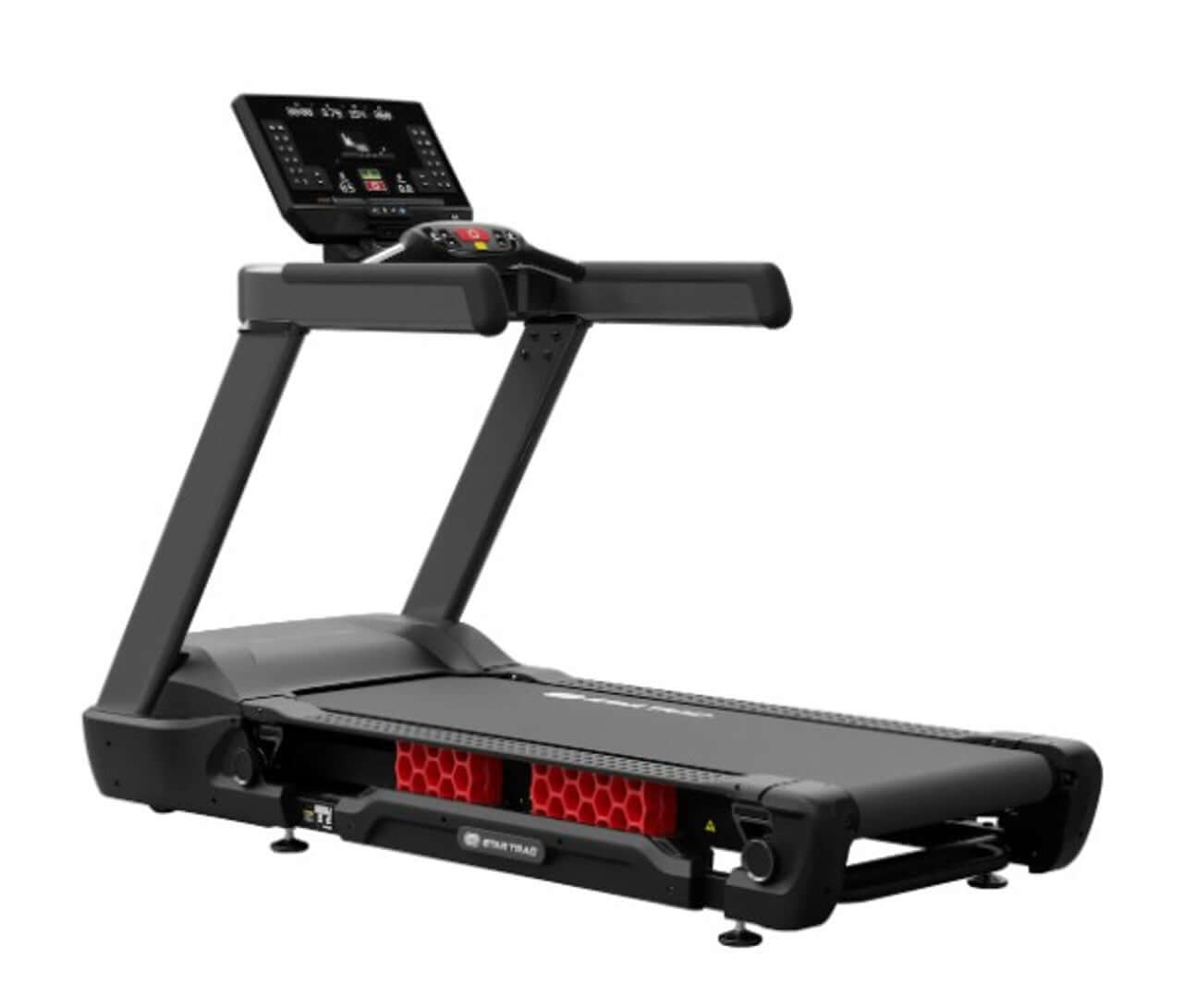

Star Trac 10 Series Freerunner w/LCD
The 10TRx FreeRunner creates a revolutionary feel for runners and walkers. HexDeck Technology creates an unprecedented cushion and responsiveness – lightweight walkers, heavyweight runners and everyone in between will experience initial cushion/flex at foot strike, along with an immediate response, returning support and energy for the push off.

The Star Trac FreeRunner™ treadmill is a revolutionary new indoor running experience. The heart of this new experience is the patent-pending HexDeck System, featuring an aluminum deck supported by a proprietary, hexagonal polymer suspension system. The result is unprecedented cushion and responsiveness, for a feel that test users describe as “easy on the joints” and “like running on a track.”

Choose between the LCD or 19-inch embedded display options.
Star Trac 10 Series Freerunner w/LCD Star Trac 10 Series Freerunner Treadmill w/19" Embedded Display


  • Deck System: Reverible Aluminum deck with independently-replaceable phenolic sheet
  • Absorption System: HexDeck aluminum deck supported by proprietary hexagonal suspension system provides a revolutionary combination of shock absorption + response
  • Heart Rate Measurement System: Telemetry and contact HR, Bluetooth w/19" display option
  • Center Controls Bar: Easily accessible Hot Bar® is located closer to the user with one-finger speed and elevation controls, integrated stop
  • button and contact heart rate grips
  • Display: Choose from LCD or 19" OpenHub display options
  • User Detect System: Yes, programmable on/off
  • Accessories: Multiple bottle and accessory holders, LCD displays pre-wired for 8 Series PVS entertainment, 800/900MHz receivers, and tablet holder
  • Electrical Requirements: 110V/20 Amp dedicated circuit with NEMA 5-20 outlet; or 220V/15 Amp dedicated circuit with NEMA 6-15 outlet
  • Additional Features: 3.5in rollers
  • California Residents see Prop 65 WARNINGS
  • Material: Powder Coated Steel Frame
  • Display: LCD
  • Display Type: Static LCD
  • Multi-Language Options: English, German, Spanish, Dutch, Portuguese, French, Italian, Swedish, Katakana, Russian, Finnish
  • Pre-Programmable Work Outs: Yes, 14+
  • Quick Start Options: Yes, single button start options
  • TV Tuner Enabled: No
  • Ethernet and Wifi Enabled: No
  • Bluetooth Data Tracking/App Connectivity: Yes
  • Bluetooth Headphones: No
  • Bluetooth Heart Rate: No
  • Apple Gymkit/Samsung Galaxy Watch Connectivity: Yes
  • Runtv Integrated Workout Videos: No
  • Egym Compatible: No
  • Integrated Web-Based Apps: No
  • Customizable Home Screen: No
  • HDMI Streaming: Yes, HDMI streaming available with PVS option; cables not included
  • USB: USB port for software updates and device charging; cables not included
  • RFID: No
  • IPTV/Set Top Box Compatible: Yes, with PVS
  • ANT+ For Group Display: Yes
  • Personal Fan: Yes, programmable auto start
  • Asset Management: Ecofit Optional
  • Tablet Holder: Integrated front, optional top add-on
  • PVS: Optional
  • 800/900 Mhz Receiver: Optional

Hexdeck Technology
Our HexDeck System features an aluminum deck supported by a proprietary, hexagonal polymer suspension system. The deck dissipates heat, keeping a cooler surface for the belt and reducing wear. The deck panel will last many times longer than MDF - only a thin phenolic layer needs replaced when worn, significantly reducing the labor and material long-term cost of ownership.

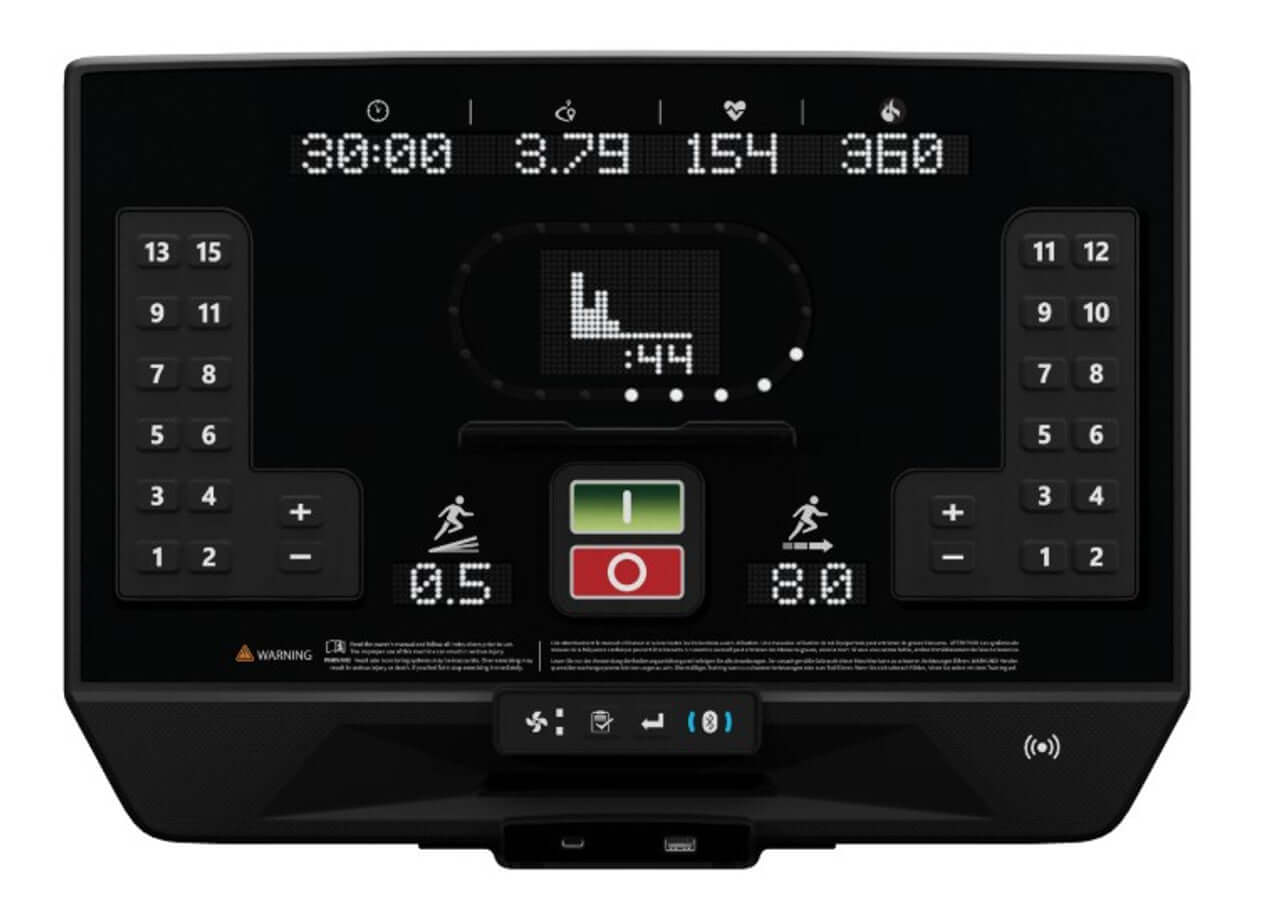

Star Trac LCD Console with Quick Key Selection
The LCD display provides all the functionality you need in a sleek, modern package. With standard features like Bluetooth connectivity, VA glass and USB charging, this is the LCD screen that is anything but standard.

Our affordable, flexible, innovative OpenHub consoles are available on every piece of 8 and 10 Series Star Trac and StairMaster cardio equipment. They offer best in class entertainment, fitness tracking and asset management solutions. With the ability to select just the features you want, and add new features in the future, this open platform offers you the ability to have exactly what you want, when you want it.

Connect to Apple Watch or Samsung Galaxy Watch
OpenHub™ LCD Consoles and 15″/19″ Embedded Displays are able to connect directly with Apple Watch or Galaxy Watch for real-time data sharing between the equipment and watch using NFC technology to allow a simple tap to pair connection.

Advagym by Sony Compatible
Reach your full potential with Sony Advagym. Learn More →

Tech Specs

  • Drive System: 5 HP AC motor
  • Running Belt System: 22" (55cm) wide belt
  • Size Of Running Surface: 60" x 22" (152cm x 55cm)
  • Step Up Height: 11" (28cm)
  • Incline Range: 0-20% max incline
  • Speed Range: 0.5-15mph (0.5-24kmh)
  • 20% max incline | 15 mph max speed
  • 21.5" (54.6cm) wide belt
  • 11" (28cm) step-up height
  • Max User Weight: 500 lbs (227 kg)
  • Product Weight: 494 lbs (224 kg)
  • Dimensions: 81"L x 35"W x 60"H (L:207cm, W:88cm, H:152cm)
  • Shipping Dimensions: 89"L x 36"W x 29"H (L:226cm, W:90cm, H:74cm)
  • Shipping Weight: 547lbs (248kg)
  • Product SKU: 9-9271-10TRX-110-LCDQ

Manufacturer's Warranty

  • Limited 10 year warranty on structural frame not including coatings, all other components 5 years parts and labor.
