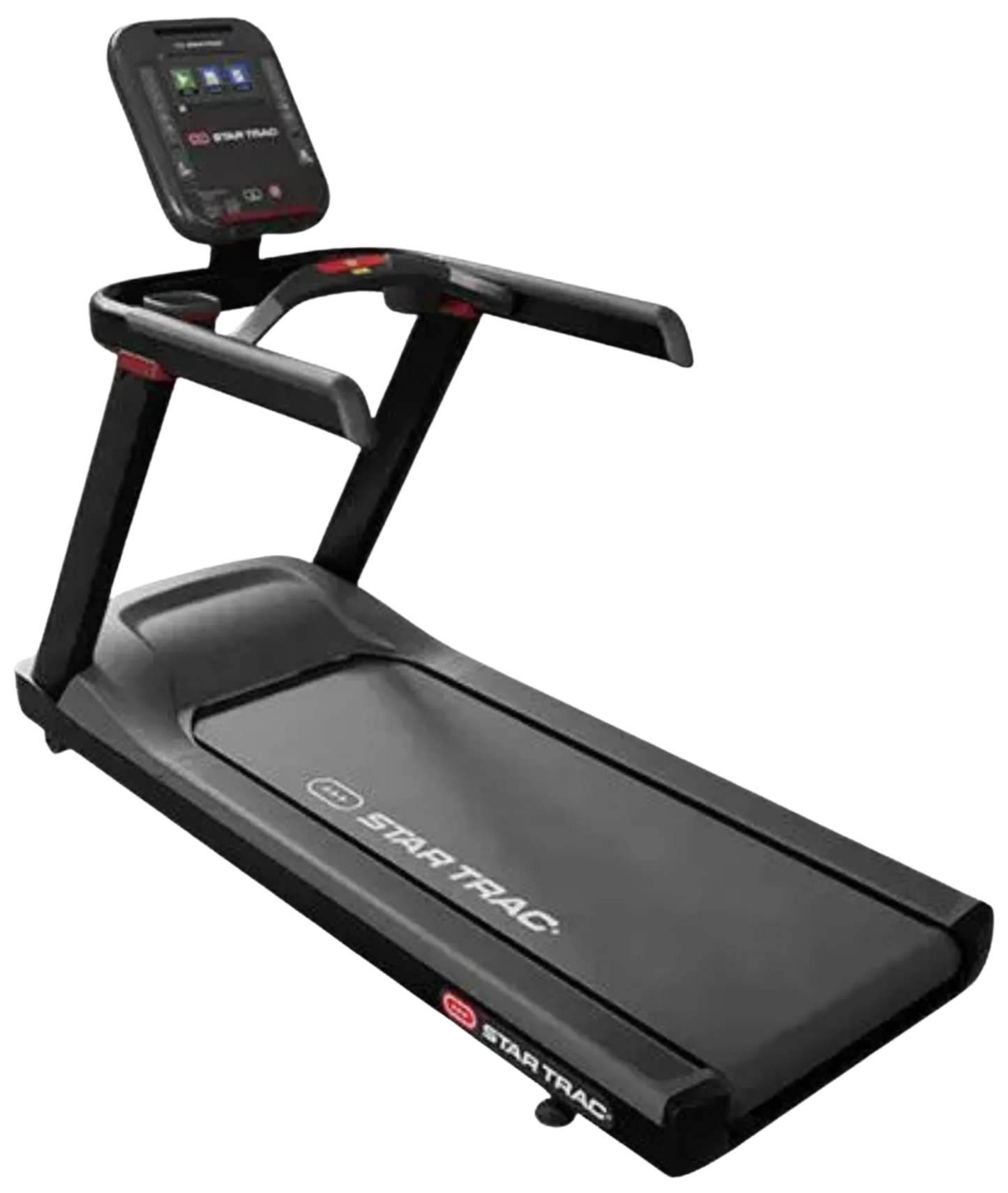

Star Trac 4 Series Treadmill w/15" Embedded Display - Black (New)

Star Trac 4 Series Treadmill w/15" Embedded Display - Black Image


Price: USD $7,599.00
Condition: New in Box
Grade: Light Commercial
Warranty: Full Manufacturers (See Description for Details)
Ships: New in Boxes (Assembly Options Available)
Processing Time: Ships from Manufacturer's Warehouse in 1-2 Weeks

Stock Status: Available to Order

Product Code: ST-4TR-15-ATSC

Processing Time*:


Full Assembly & Installation:



The 4 Series cardio line from Star Trac is the perfect solution for the hospitality and multi-housing markets. With premium full color flat panel displays, quick select adjustment keys, and optional personal viewing screen, the 4TR provides smaller facilities with the look and performance of a full commercial product.

Choose between 4 Series 15″ Embedded, 10″ Touchscreen & 10″ LCD versions of the new OpenHub family of consoles

Star Trac 4 Series Treadmill w/15" Embedded Display - Black Star Trac 4 Series Treadmill w/10" Touch Display - Black Star Trac 4 Series Treadmill w/10" LCD - Black

Star Trac 4-Series Treadmill Assembly Procedure Video


  • Deck System: Reversible MDF deck with phenolic coating
  • Absorption System: Triple cell cushioning system provides maximum shock absorption making the entire deck a sweet spot
  • Heart Rate Measurement System: Telemetry and contact HR
  • Center Controls Bar: Warm bar with contact HR and Emergency Stop
  • Display: Full Color 10" LCD
  • User Detect System: Yes, programmable on/off
  • Accessories: Bottleholder, pre-wired for PVS entertainment, USB port
  • Additional Features: 3.5in rollers
  • Material: Powder Coated Steel Frame
  • Customizable: Paint color options approval required
  • Standard Color Options: 60 Black
  • Display: 4 Series 15” Touchscreen
  • Display Type: Capacitive Touchscreen
  • Multi-Language Options: English, German, Spanish, Dutch, Portuguese, French, Italian, Swedish, Russian, Finnish, Danish, Chinese, Japanese, Turkish, Polish, Russian, Hebrew, Czech, Slovak
  • Pre-Programmable Work Outs: Yes, 20+
  • Quick Start Options: Yes, single button start options
  • Tv Tuner Enabled: Yes (Global TV tuner options)
  • Ethernet and Wifi Enabled: Yes
  • Bluetooth Data Tracking/App Connectivity: Yes
  • Bluetooth Headphones: Yes
  • Bluetooth Heart Rate: Yes
  • Apple Gymkit/Samsung Galaxy Watch Connectivity: Yes
  • Runtv Integrated Workout Videos: Yes
  • Integrated Web-Based Apps: Yes
  • Customizable Home Screen: Yes
  • HDMI Streaming: Yes; cables not included
  • USB: USB port for software updates and device charging; cables not included
  • RFID: Optional
  • IPTV/SET Top Box Compatible: Yes, add-on accessories required
  • ANT+ For Group Display: Yes
  • Personal Fan: Yes, programmable auto start
  • Asset Management: Ecofit Optional
  • Tablet Holder: Integrated front
  • PVS: No
  • 800/900 MHZ Receiver: No

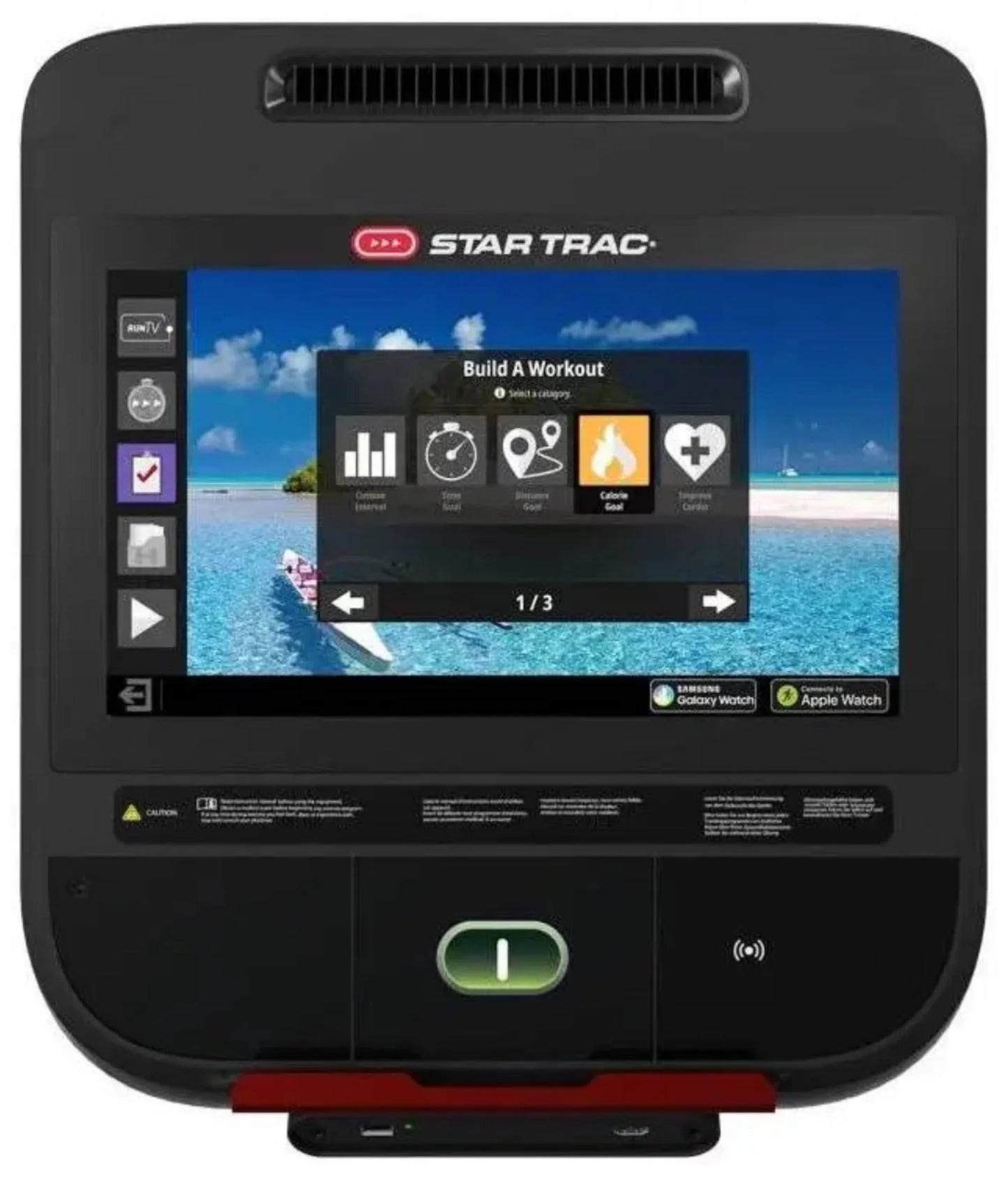

Star Trac 8 Series/4 Series 15″ Capacitive Touch Openhub Console
The re-imagined 15″ embedded touchscreen display adds a premium new look and experience to the already-great Star Trac cardio line. The new embedded console offers a new user interface design, Star Trac 20 HIIT Programming, RunTV and web-based media access for news, entertainment and workout motivation. With standard features like HDMI streaming, Bluetooth connectivity and TV tuner options, this is a display that has something for every user.

Dimensions: 20"L x 5.5"W x 17"H (L:51cm, W:14cm, H:43cm)
Connect to Apple Watch or Samsung Galaxy Watch
OpenHub™ LCD Consoles and 15″/19″ Embedded Displays are able to connect directly with Apple Watch or Galaxy Watch for real-time data sharing between the equipment and watch using NFC technology to allow a simple tap to pair connection.
OpenHub Consoles
Our affordable, flexible, innovative OpenHub consoles are available on every piece of 8 Series Star Trac. They offer best in class entertainment, fitness tracking and asset management solutions. With the ability to select just the features you want, and add new features in the future, this open platform offers you the ability to have exactly what you want, when you want it.
Advagym by Sony Compatible
Reach your full potential with Sony Advagym. Learn more →

Tech Specs

  • Drive System: 3 HP DC motor
  • Electrical Requirements: 110V/15 Amp with standard outlet; or 220V/15 Amp
  • Running Belt System: 22" (55cm) wide belt
  • Size Of Running Surface: 60" x 22" (152cm x 55cm)
  • Step Up Height: 7" (17cm)
  • Incline Range: 0-15% max incline
  • Speed Range: 0.5-12.5mph (0.5-20kmh)
  • Max User Weight: 450lb (205kg)
  • Product Weight: 399lbs (181kg)
  • Dimensions: 81"L x 32"W x 60"H (L:206cm, W:81cm, H:152cm)
  • Shipping Dimensions: 89"L x 36"W x 23"H (L:226cm, W:92cm, H:59cm)
  • Shipping Weight: 442lbs (201kg)
  • Product SKU: 9-3613-4TR-110-15A-15-ATSC-60BLK

Manufacturer's Warranty

  • Not intended for commercial use.
