The 4 Series cardio line from Star Trac is the perfect solution for the hospitality and multi-housing markets. With premium display options, quick select adjustment keys and optional personal viewing screen, the 4 Series provides smaller facilities with the look and performance of a full commercial product.
Choose between 4 Series 15″ Embedded, 10″ Touchscreen & 10″ LCD versions of the new OpenHub family of consoles
Features
BASE FEATURES
- Heart Rate Measurement System: Telemetry and contact HR
- Controls: Console
- Bottom Bracket: ISIS
- Pedals: Commercial-grade pedals with adjustable straps provide ease of set-up and durable performance
- Seat Adjustment: Pop pin
- Display: Choose from Full Color 10" LCD, 10" Capacitive Touchscreen or 15" OpenHub Touchscreen
- Accessories: Bottle holder, pre-wired for PVS entertainment
- Drive System: Alternator
- Electrical Requirements: LCD is self-generating; touch screen and PVS options require 12V/5 Amp power supply
- Start Up Watts: 20
- Additional Features: Elbow pads support multiple riding positions in comfort
- California Residents see Prop 65 WARNINGS
FRAME
- Material: Powder Coated Steel Frame
- Customizable: Paint color options approval required
- Standard Color Options: 60 Black
CONSOLE
- Display: 4 Series 10"
- Display Type: Full Color LCD Display, non-touch
- Multi-Language Options: English, German, Spanish, Dutch,
Portuguese, French, Italian, Swedish,
Russian, Chinese, Japanese, Polish
- Pre-Programmable Work Outs: Yes, 20+
- Quick Start Options: Yes, single button start options
- TV Tuner Enabled: No
- Ethernet And Wifi Enabled: No
- Bluetooth Data Tracking/App Connectivity: No
- Bluetooth Headphones: No
- Bluetooth Heart Rate: No
- Apple Gymkit/Samsung Galaxy Watch Connectivity: No
- RUNTV Integrated Workout Videos: No
- Integrated Web-Based Apps: No
- Customizable Home Screen: No
- HDMI Streaming: No
- USB: USB port for software updates and
device charging; cables not included
- RFID: No
- IPTV/Set Top Box Compatible: No
- ANT+ For Group Display: No
- Personal Fan: Yes, programmable auto start
- Asset Management: Ecofit Optional
- Tablet Holder: Integrated front
- PVS: Optional
- 800/900 MHZ Receiver: No

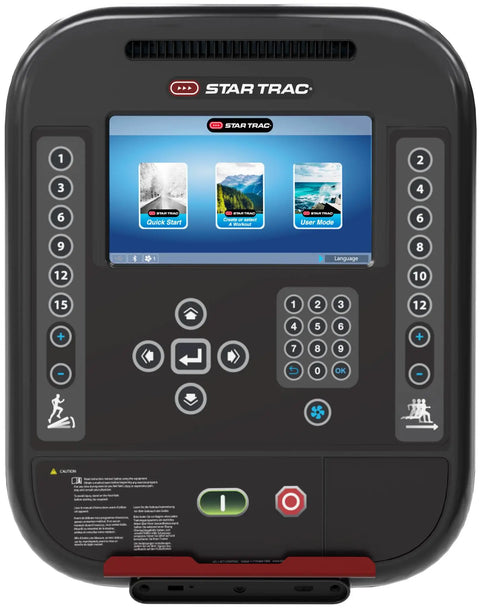

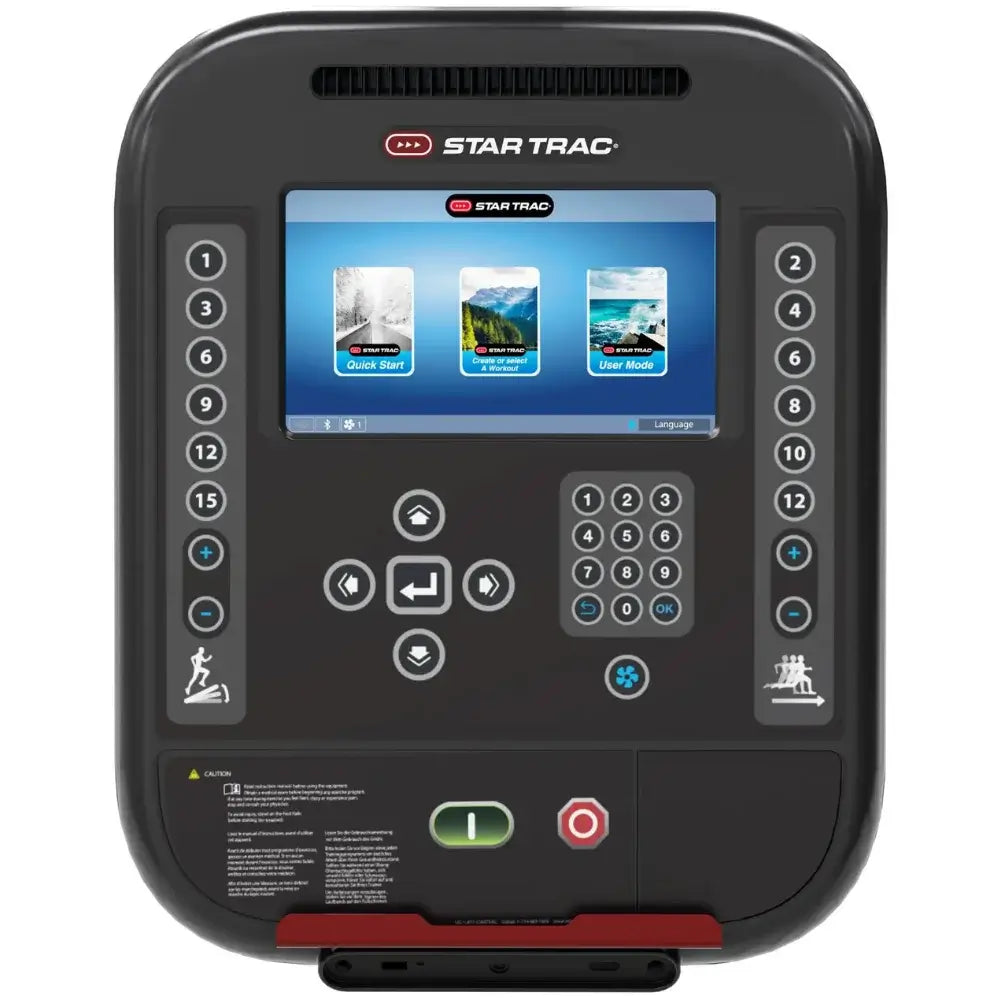

Star Trac 4 Series 10″ LCD Cardio Console
The LCD display provides all the functionality you need in a sleek, modern package. With features like a full-color display, quick keys and USB charging, this is the LCD screen that is anything but standard.
- Treadmill includes Quick Keys for one-touch selection of preset speed and elevation settings on the fly
- USB charging port
- Multiple program options
- Pre-wired for ECOFIT asset management solution
- Pre-wired for PVS entertainment option
Tech Specs
- Dimensions: 46"L x 23"W x 57"H (L:117cm, W:58cm, H:145cm)
- Max User Weight: 450lb (204kg)
- Product Weight: 132lbs (60kg)
- Shipping Dimensions: 48"L x 23"W x 34"H (L:121cm, W:58cm, H:86cm)
- Shipping Weight: 152lbs (69kg)
- Product SKU: 9-3180-4UB-10IN-60BLK
Manufacturer's Warranty
- Limited 10 year warranty on structural frame not including coatings, all other components warranted for 5 years parts and 2 years labor. Wear items* 1 year parts and labor.
