Home French Fitness Plate Loaded Smith Machines Multi Functional Smith Machines French Fitness FSR20 Multi Functional Gym System Plate Loaded (New)

French Fitness FSR20 Multi Functional Gym System Plate Loaded (New)

Available to Order

As high as: ~~USD $3,899.00~~

$2,899.00

You save $1,000.00

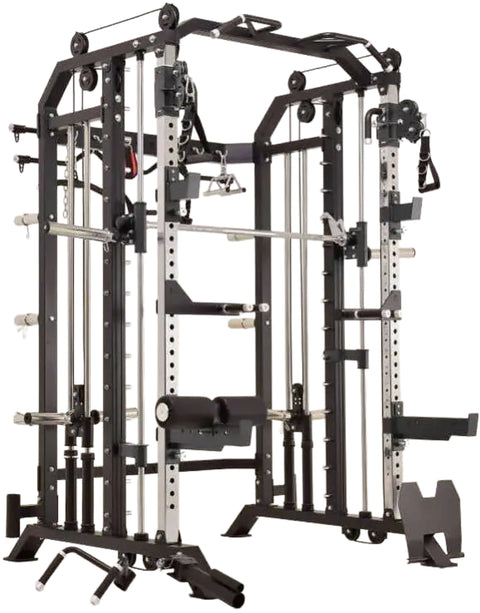

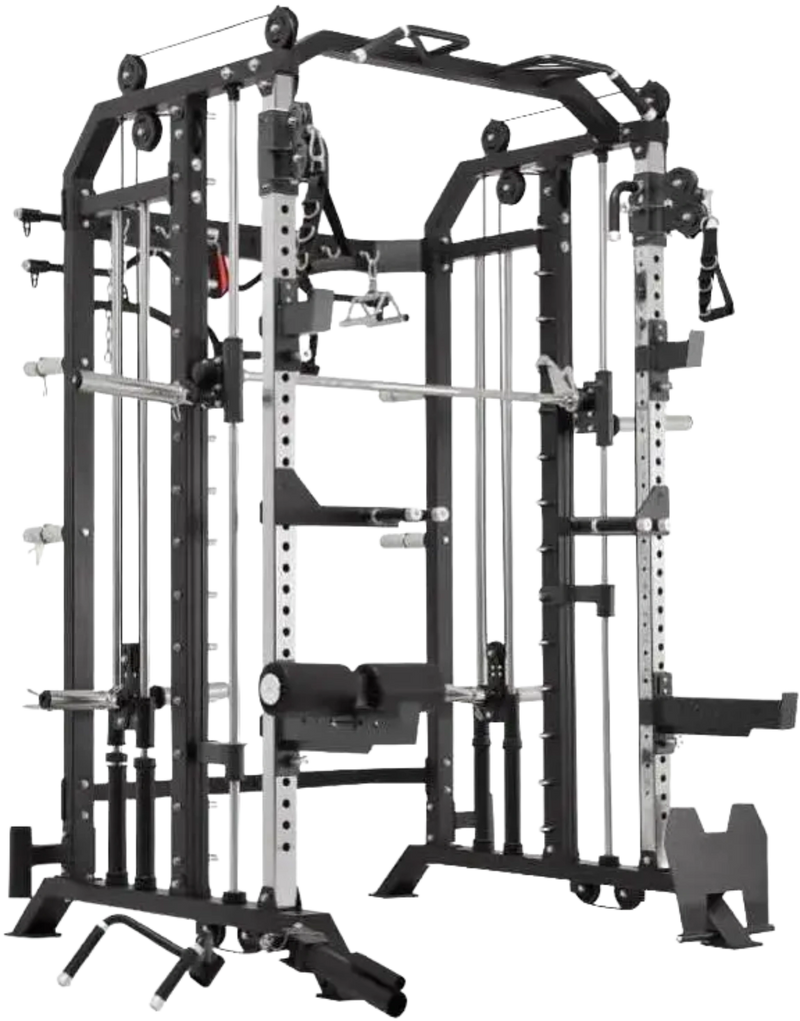

French Fitness FSR20 Multi Functional Gym System Plate Loaded (New)

French Fitness FSR20 Multi Functional Gym System Plate Loaded (New)

Name: French Fitness FSR20 Multi Functional Gym System Plate Loaded (New)
Brand: French Fitness
SKU: FF-FSR20-PL
Price: 2899.0 USD
Availability: InStock

Available to Order

As high as: ~~USD $3,899.00~~

$2,899.00

You save $1,000.00

Condition: New

Grade: Light Commercial (More Info)

Warranty: 10 Years Parts + 1 Year On-Site Labor (More Info)

Ships: New in Manufacturers Packaging (Assembly Options Available)

Processing Time: Ships from our Warehouse in 3-7 Business Days + Transit Time (More Info)

Product Code: FF-FSR20-PL

Colors

Paint Color

Vinyl Color

Transit Time Calculator:

Customer Location:

ZIP code

Total with options

$2,899.00

As low as $XXX / 4 interest-free payment

View full details

Description

The French Fitness FSR20 P/L Multi Functional Gym System Plate Loaded provides complete resistance training for all your fitness goals. The Smith Rack has guide rods which eliminate the need for you to balance the barbell and focus purely on the lifting movement. The guide rods has lock-out points up and down the track and a quick twist of the wrist engages these points, locking the barbell in place. This eliminates the need for a spotter, providing weight lifters with more independence.

The Dual Cable Cross different selectable cable positions allow you to perform a variety of exercises. Features a pulley design that allows fluid cable movement for a smoother and safer workout.

Extra info

Manuals

Photos

Instructional video

We have taken a full instructional video, 15 minutes long, of one of our FSR machines, the FSR60. We have demonstrated 92 exercises to show the wide assortment of movement that our FSR machines use. We believe this will be a very useful resource for any FSR system that you decide to buy, to demonstrate the functionality of the system. Most FSR systems have similar attachment options and features.

Comparisons

The Ultimate ALL-IN-ONE Machine:

Smith Machine
Squat Rack
Functional Trainer
Landmine
Dip Bars
Seated Row Foot Rest
Pull Up Bar
Jammer Arm (Optional)
Leg Press (Optional)
Lat Pulldown (Optional)
Bench (Optional)
Preacher Curl (Optional on Bench Attachment)
Leg Extension / Leg Curl (Optional on Bench Attachment)

Features

Brand: French Fitness

2 Olympic bar holders
10 accessory hooks
Olympic bar holder
Multiple angle grip
Cross-over pulley swivel
Adjustable multi-ring strap
Knurling chrome plated weightlifting rod for added grip force and prevent rust
Squat protection rack
Plate Loaded weight stacks on both sides and can be adjusted freely
Double pull cable
Weight plate storage
Multi-hand dip handle
Metal cover
Solid hard chrome plated guide rod
Cable Tensile Strength: 1764 lbs braking force (800 kg)
T-bar row landmine can expand a variety of training functions which can be adjusted at will, convenient and free
1" holes on the bars for the j hook

Tech specs

Maximum user weight: 350 lbs (159 kg)
Storage Horn Capacity: 176.4 lbs (80 kg) each horn
Max Load (J Hooks): 555 lbs (251.7 kg)
Max Load (Spotter Arms): 555 lbs (251.7 kg)
Inner cage 43.5" (110.5 cm)
Outer cage width 48.75"(123.8 cm)
Outer cage width 78.5" (199.4 cm) with smith bar
Depth 57.5" (146 cm)
Depth with bar catches 63.5" (161.3 cm)
Bar Catches (Length): 17.25" (43.8 cm) from cable column to end
Footrest adds 10"- 12" long- 16" wide
Product Weight: 529.3 lbs (240 kg)
Dimensions: 78.5" W (w/Smith Bar) x 63.5" D (w/Bar Catches) x 90.75" H (199.4 cm x 161.3 cm x 230.5 cm)

Cable Column

2" x 2" Cable Column
2:1 ratio
Cable reach 90" (228.6 cm)
Hole Diameter: 0.825" (20.95 mm)
Pin Diameter sizes accepted: 0.75" to 0.8"
Starting Weight (w/o plates): 13.23 lbs (6 kg) each side | 26.46 lbs (12 kg) combined
Weight Plate Loading Capacity: 352.7 lbs (160 kg) each side | 705.5 lbs (320 kg) combined

Smith Bar

Smith Bar Weight: 22 lbs (10 kg) (Not Counterbalanced)
Starting Weight: 40 lbs (18.2 kg)
Bar Weight Plate Capacity: 617.3 lbs (280 kg)
Weight Pin Diameter: 10mm
Weight Pin Length: 86mm
Smith Bearing Type: Ball Bearings

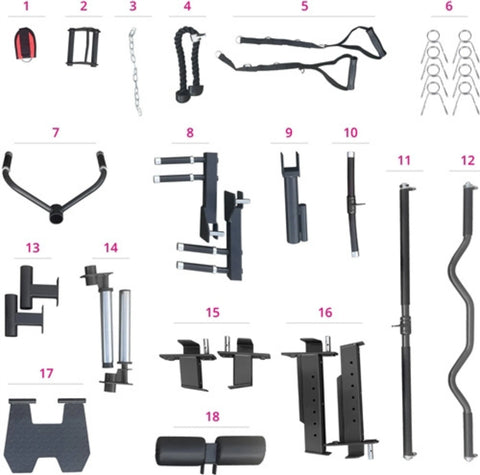

Accessories

Ankle Strap

Seated Row / Chin Bar

Chain

Tricep Rope

Adjustable Stirrup Handles

8 Olympic Spring Collars

T-Bar Row Handle

Dip Bars (Pair)

Landmine

18.5" Revolving Straight Bar

48" Revolving Dual Hook Straight Bar

48" Revolving Dual Hook Curl Bar

Olympic Bar Holders (Pair)

Smith Bar Weight Horns / Holders (Pair)

J Hooks (Pair)

Bar Catches (Pair)

Seated Row Foot Platform

Lat Pulldown Knee Pad

Shipping Dims & Weight

Box #	NW	GW	Dimensions
Box 1 of 8	78 lbs	83.6 lbs	81.5" x 12.4" x 3.94"
Box 2 of 8	72.6 lbs	77 lbs	77.56" x 11.02" x 5.71"
Box 3 of 8	94.6 lbs	100 lbs	63.39" x 21.26" x 6.69"
Box 4 of 8	68.2 lbs	72.6 lbs	46.06" x 21.26" x 7.09"
Box 5 of 8	76.6 lbs	81 lbs	53.94" x 13.78" x 7.68"
Box 6 of 8	52.8 lbs	55 lbs	22.05" x 20.67" x 7.48"
Box 7 of 8	61.6 lbs	64.9 lbs	3.62" x 80.71"
Box 8 of 8	24.9 lbs	29.7 lbs	26.38" x 15.5" x 5.51"
