BASE FEATURES

• Deck System: Reversible Aluminum deck with independently-replaceable phenolic sheet
• Absorption System: HexDeck aluminum deck supported by proprietary hexagonal suspension system provides a revolutionary combination of shock absorption + response
• Heart Rate Measurement System: Telemetry and contact HR, Bluetooth w/19" display option
• Center Controls Bar: Easily accessible Hot Bar® is located closer to the user with one-finger speed and elevation controls, integrated stop
• button and contact heart rate grips
• Display: Choose from LCD or 19" OpenHub display options
• User Detect System: Yes, programmable on/off
• Accessories: Multiple bottle and accessory holders, LCD displays pre-wired for 8 Series PVS entertainment, 800/900MHz receivers, and tablet holder
• Electrical Requirements: 110V/20 Amp dedicated circuit with NEMA 5-20 outlet; or 220V/15 Amp dedicated circuit with NEMA 6-15 outlet
• Additional Features: 3.5in rollers

FRAME

• Material: Powder Coated Steel Frame
• Customizable: Paint color options approval required
• Standard Color Options: Quantum Silver

CONSOLE

• Display: 19" Star Trac
• Display Type: Capacitive Touchscreen
• Multi-Language Options: English, German, Spanish, Dutch, Portuguese, French, Italian, Swedish, Russian, Finnish, Danish, Chinese, Japanese, Turkish, Polish, Russian, Hebrew, Czech, Slovak
• Pre-Programmable Work Outs: Yes, 23+
• Quick Start Options: Yes, single button start options
• TV Tuner Enabled: Yes (Global Tuner Options)
• Ethernet and Wifi Enabled: Yes
• Bluetooth Data Tracking/App Connectivity: Yes
• Bluetooth Headphones: Yes
• Bluetooth Heart Rate: Yes
• Apple Gymkit/Samsung Galaxy Watch Connectivity: Yes
• Runtv Integrated Workout Videos: Yes
• Egym Compatible: Yes
• Integrated Web-Based Apps: Yes
• Customizable Home Screen: Yes
• HDMI Streaming: Yes; cables not included
• USB: USB port for software updates and device charging; cables not included
• RFID: Optional
• IPTV/Set Top Box Compatible: Yes, add-on accessories required
• ANT+ For Group Display: Yes
• Personal Fan: Yes, programmable auto start
• Asset Management: Ecofit Optional
• Tablet Holder: Integrated front
• PVS: No
• 800/900 Mhz Receiver: No

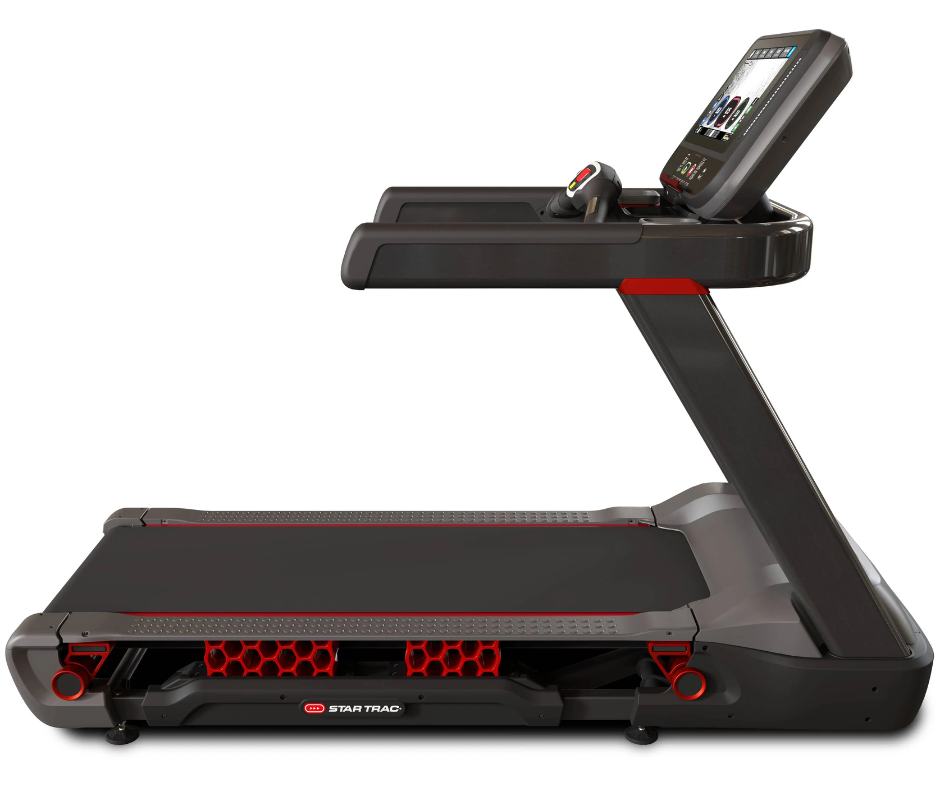

Hexdeck Technology

Our HexDeck System features an aluminum deck supported by a proprietary, hexagonal polymer suspension system. The deck dissipates heat, keeping a cooler surface for the belt and reducing wear. The deck panel will last many times longer than MDF - only a thin phenolic layer needs replaced when worn, significantly reducing the labor and material long-term cost of ownership.

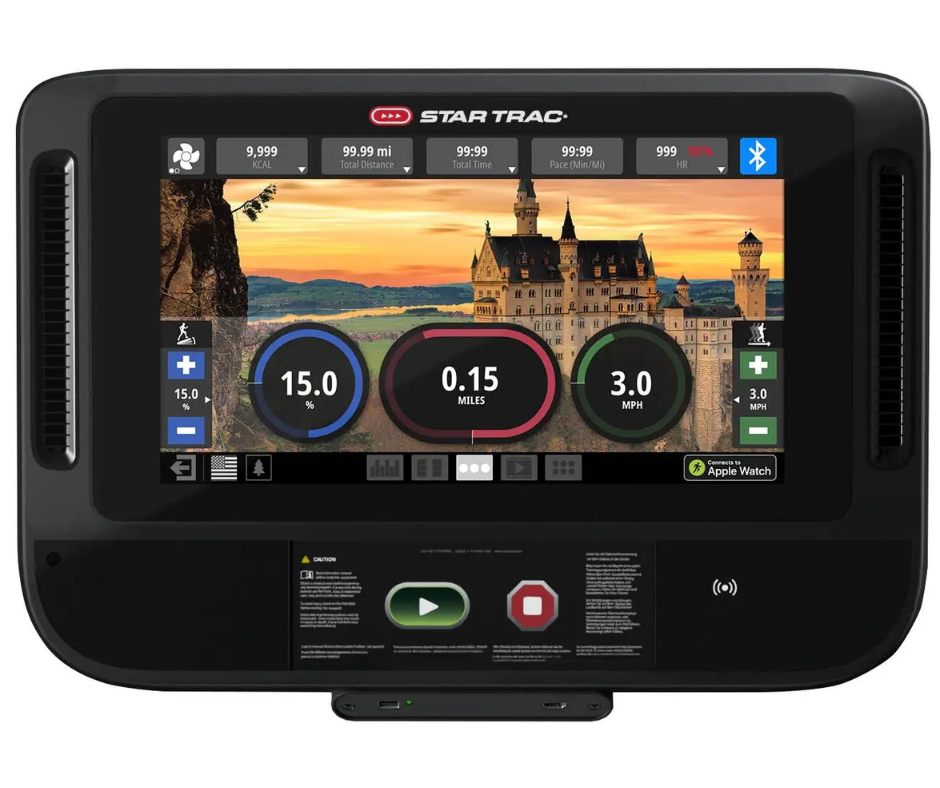

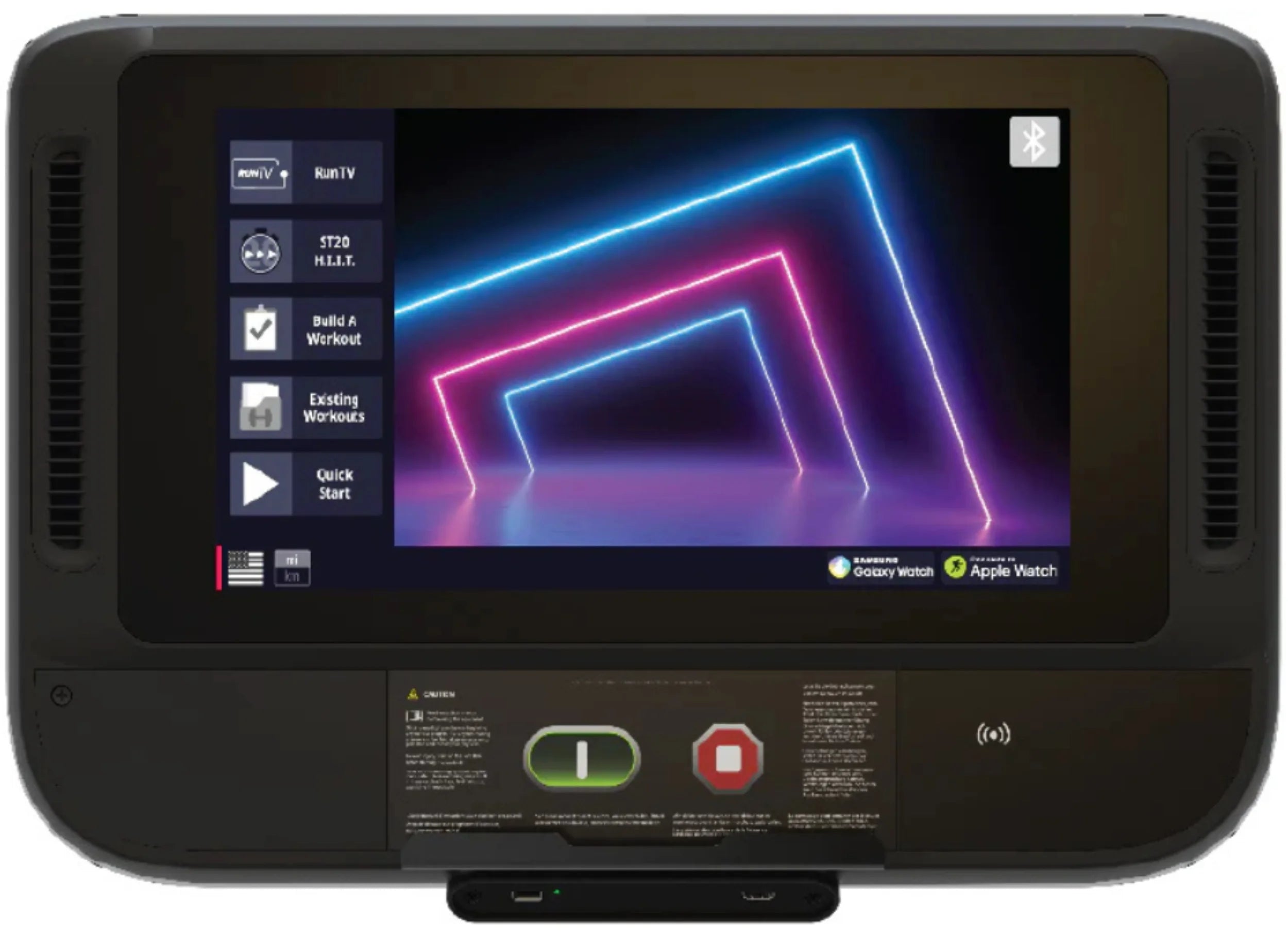

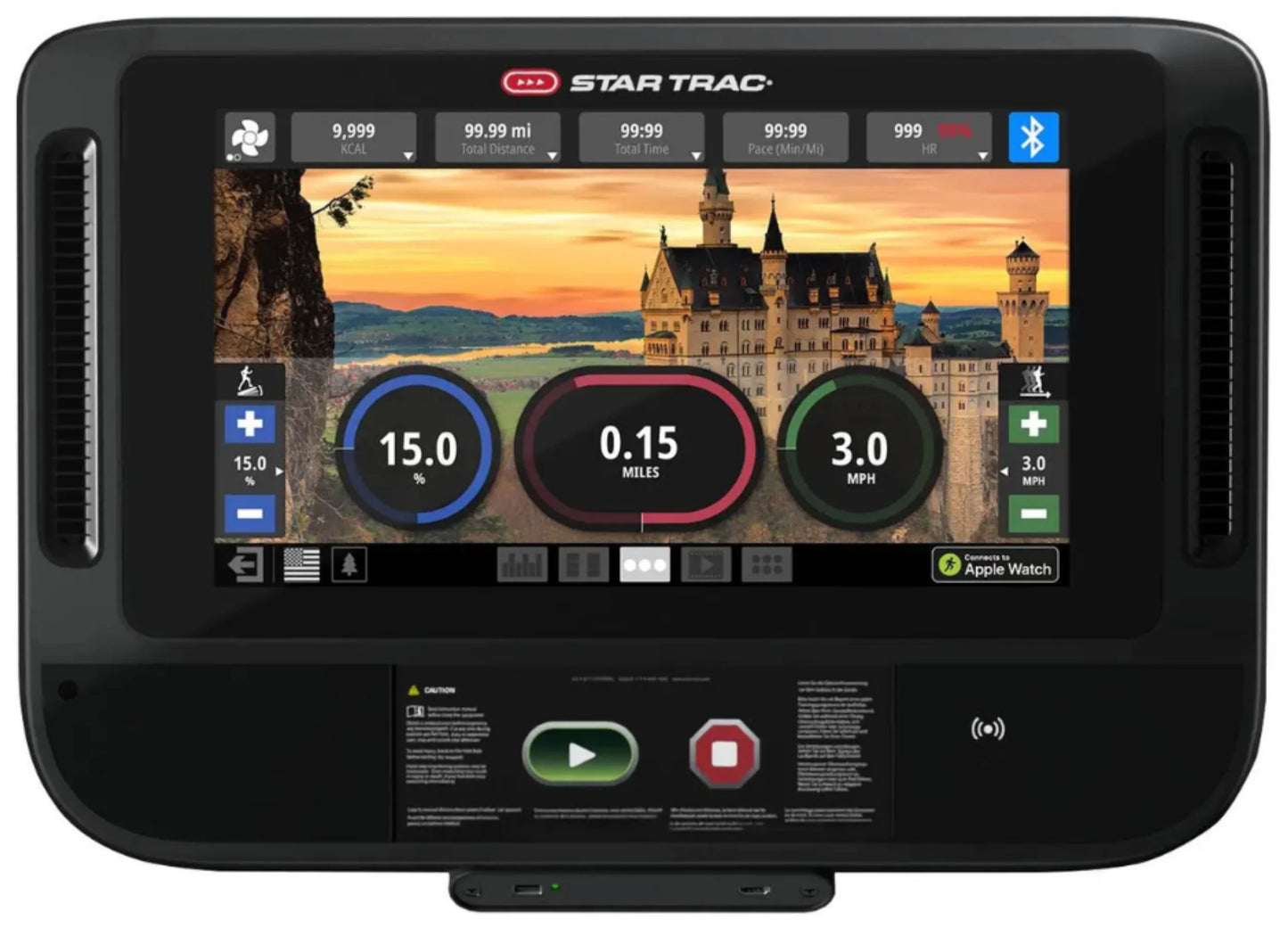

Openhub Console

The 19" Capacitive Touch OpenHub Console offers a premium user interface design, Star Trac 20 HIIT Programming, RunTV and web-based media access for news, entertainment and workout motivation. With standard features like HDMI streaming, Bluetooth connectivity and TV tuner options, this is a display that has something for every user.

Our affordable, flexible, innovative OpenHub consoles are available on every piece of 8 and 10 Series Star Trac and StairMaster cardio equipment. They offer best in class entertainment, fitness tracking and asset management solutions. With the ability to select just the features you want, and add new features in the future, this open platform offers you the ability to have exactly what you want, when you want it.

Connect to Apple Watch or Samsung Galaxy Watch

OpenHub™ LCD Consoles and 15"/19" Embedded Displays are able to connect directly with Apple Watch or Galaxy Watch for real-time data sharing between the equipment and watch using NFC technology to allow a simple tap to pair connection.
